Installation Of Luggage Compartment Floor

WARNING: This page is about a different variant/trim than selected.

Clean all bonding surfaces (1) on vehicle and on new part with cleaning agent R1.

Apply adhesive K5b to bonding surfaces (1).

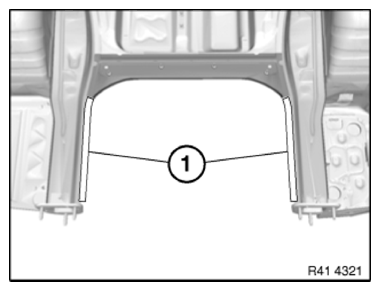

Fig 1: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust luggage compartment floor (1) to fit in conjunction with TAIL PANEL and secure.

Rivet luggage compartment floor with 6 punch rivets N5 in areas (2).

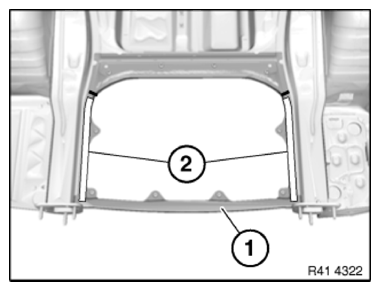

Fig 2: Identifying Luggage Compartment Floor And Punch Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.
