Removing Roof Outer Skin

WARNING: This page is about a different variant/trim than selected.

Release 4 star screws (1) in roof channel.

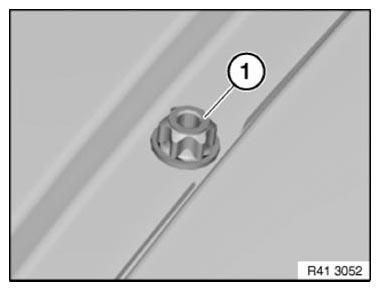

Fig 1: Identifying Star Screws In Roof Channel

Courtesy of BMW OF NORTH AMERICA, INC.

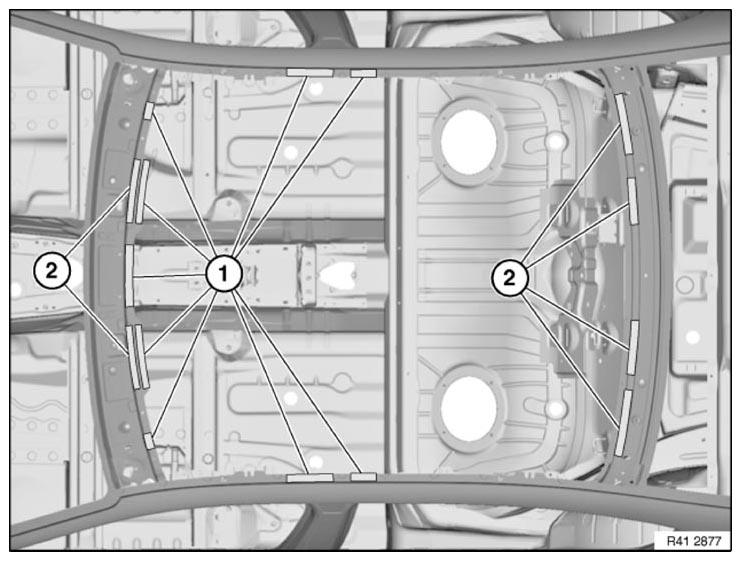

Fig 2: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

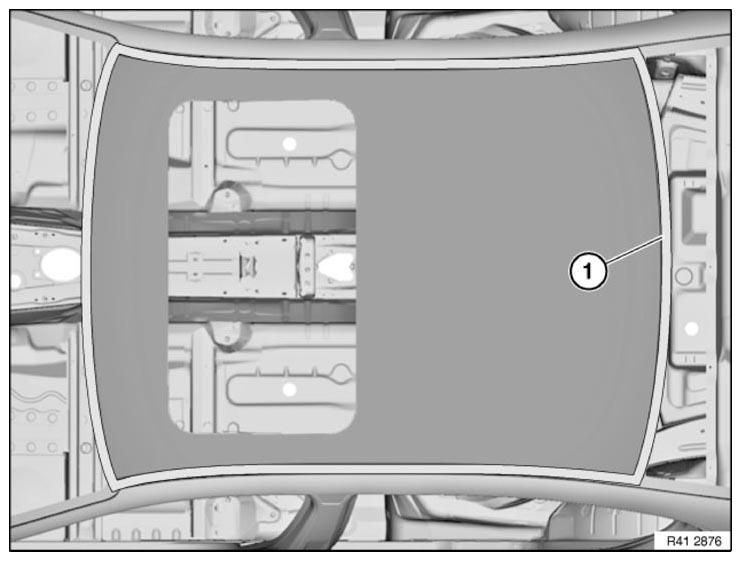

Fig 3: Identifying Adhesive And Sealant Area

Courtesy of BMW OF NORTH AMERICA, INC.

Shown without roof outer skin for purposes of clarity.

Release adhesive in areas (1) and sealant (2).

Take off roof outer skin.
