41 63 003 Cover Bowl Replacement

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

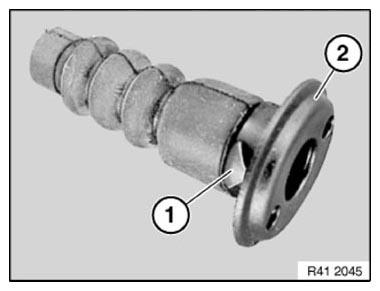

Unscrew nut (1).

Installation:

Make sure seal (2) is correctly seated.

Fig 1: Identifying Seal And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

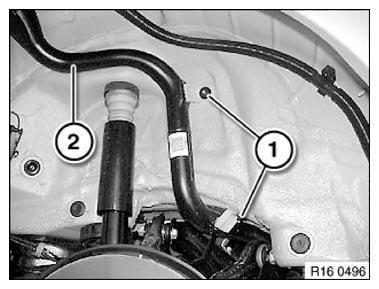

Clean contact surface on body and grounding lead on fuel filler pipe.

Ground connection must be guaranteed.

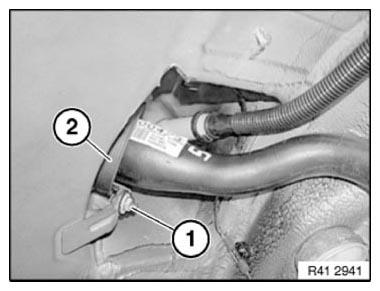

Release nuts (1).

Fig 2: Identifying Fuel Filler Pipe And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

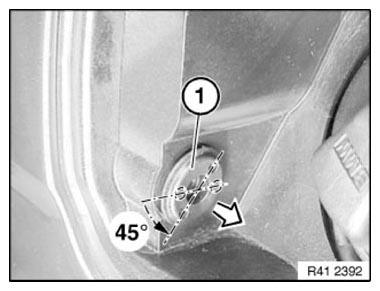

Turn cover (1) through approx. 45° and lever out in direction of arrow.

Fig 3: Lever Out Cover In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

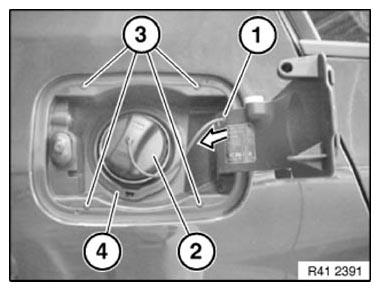

Press retaining strap (1) inwards and remove.

Remove cover (2).

Remove rubber pad (3).

Insert a suitable tool through bores (3) and release catches.

Installation:

Make sure seal (4) is correctly seated.

Fig 4: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

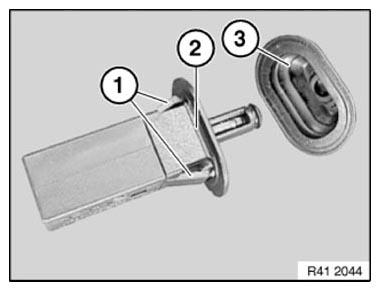

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

Fig 5: Checking Protective Cap For Correct Seating

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

Fig 6: Checking Locks On Left/Right Of Cover For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Close flap (1).

Twist cover bowl (2) in direction of arrow out of side panel and remove.

Fig 7: Twisting Cover Bowl In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

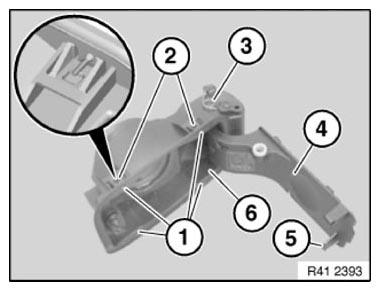

Following parts on cover bowl (6) must not be damaged or missing:

Rubber pad
Catches, top/bottom
Spring
Catch
Guide

Fig 8: Identifying Spring, Rubber Pad And Catch
Courtesy of BMW OF NORTH AMERICA, INC.
