Necessary Preliminary Tasks

• Remove left and right luggage compartment wheel arch trims  . See 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM or 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .

Release screws (1).

Remove guide (2).

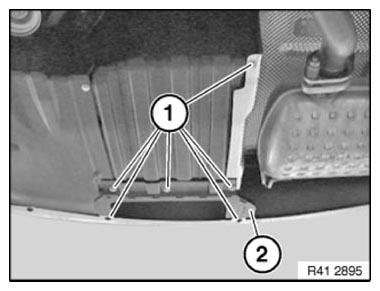

Fig 1: Identifying Screws And Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

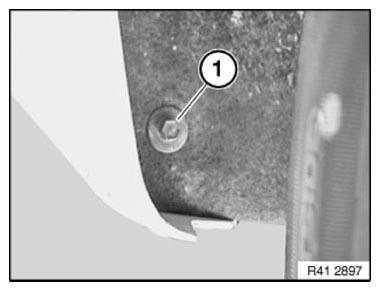

Fig 2: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

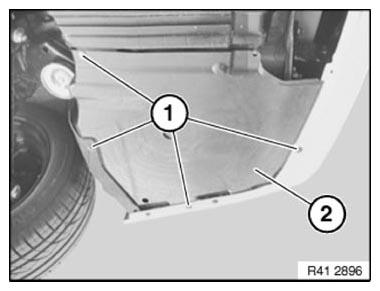

Fig 3: Identifying Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove multifunction pan.

Tightening torque 51 71 9AZ .

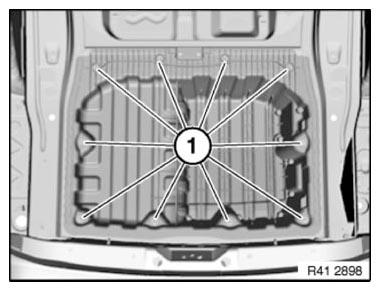

Fig 4: Removing Multifunction Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

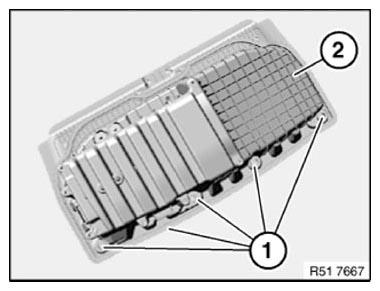

Fig 5: Identifying Seals On Multifunction Pan

Courtesy of BMW OF NORTH AMERICA, INC.
