41 12 654 Right Luggage Compartment Floor Replacement (Rear Side Panel And Tail Panel Removed): Removal

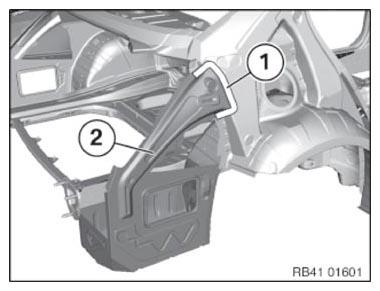

Release welded connections in area (1) and loosen tensioning strap (2).

Fig 1: Identifying Welded Connections Area And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

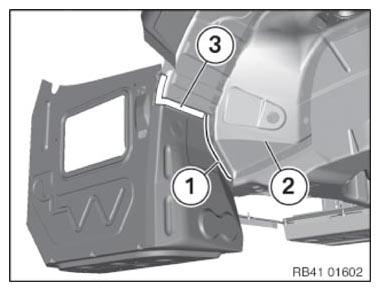

Mark severance cut (1) next to reinforcement (2) and disconnect.

Open welded connections in area (3).

Fig 2: Identifying Severance Cut, Reinforcement And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

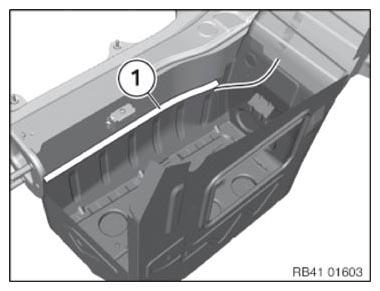

Open welded connections in area (1) and remove luggage compartment floor.

Shown without tensioning strap for purposes of clarity.

Fig 3: Identifying Welded Connections Area Of Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.
