New Part Preparation

WARNING: This page is about a different variant/trim than selected.

Mark severance cut on new part luggage compartment floor according to severance cut on vehicle + 15 mm material extra and cut.

Adjust new parts in combination with side panel and tail panel.

NOTE: The luggage compartment floor is completely joined using the welding method when the side panel and/or tail panel are not replaced at the same time.

Prepare tensioning strap for joining by welding in areas (1).

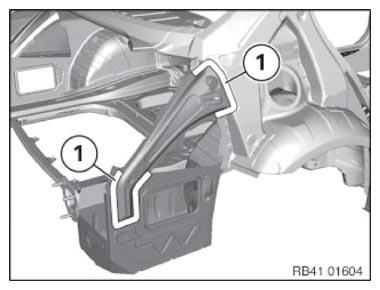

Fig 1: Identifying Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare luggage compartment floor in area (1) for joining by welding.

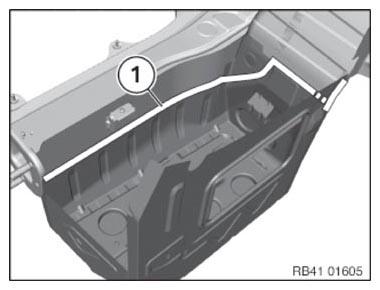

Fig 2: Identifying Luggage Compartment Floor Area

Courtesy of BMW OF NORTH AMERICA, INC.
