Removal Of Luggage Compartment Floor

Open welded connections in area (1).

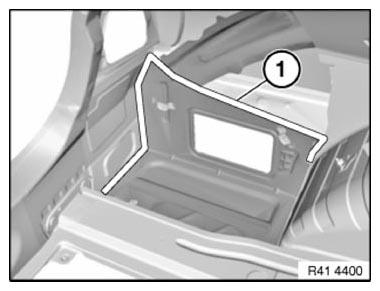

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

With removed tail panel:

Mark severance cut (1) and disconnect tensioning strap (2).

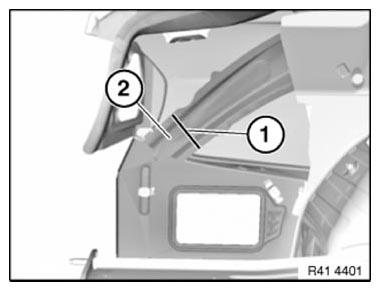

Fig 2: Identifying Severance Cut And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

For removed side wall:

Release welded connections in area (1) and loosen tensioning strap (2).

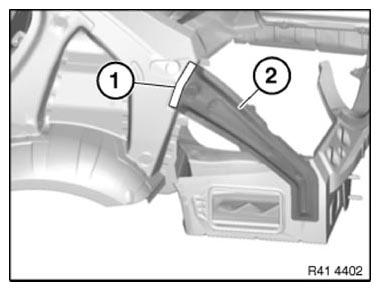

Fig 3: Identifying Welded Connections Area And Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Mark severance cut (2) next to reinforcement (3) and disconnect.

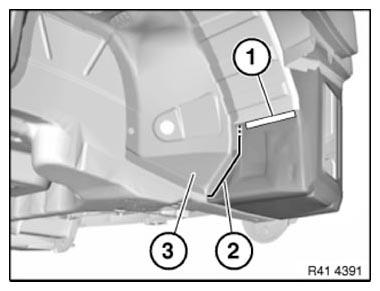

Fig 4: Identifying Severance Cut, Reinforcement And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove the luggage compartment floor.

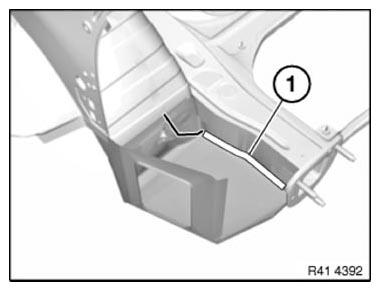

Fig 5: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
