Removal Of Luggage Compartment Floor

WARNING: This page is about a different variant/trim than selected.

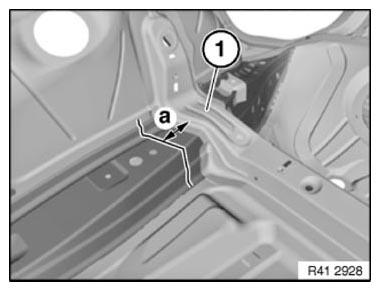

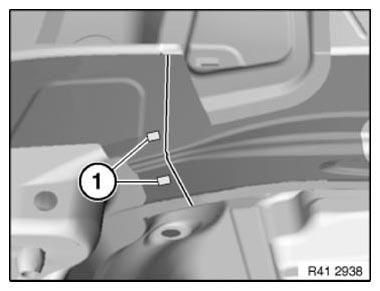

Mark severance cut in accordance with Dimension a and cut.

Dimension a = 40 mm behind side member support (1).

Fig 1: Identifying Luggage Compartment Floor Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

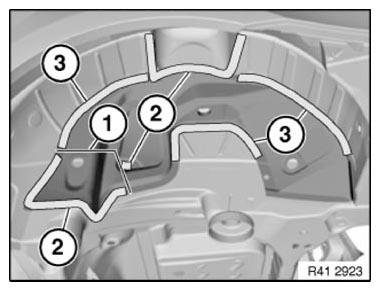

Mark severance cut (1) and cut.

Open welded connections in areas (2).

Installation note:

Weld new components in areas (3) additionally.

Fig 2: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

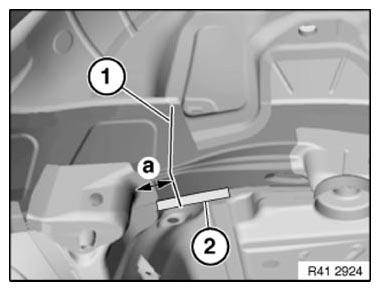

Mark severance cut (1) in accordance with dimension a and disconnect rear axle support.

IMPORTANT: Cut outer metal panel only.

Dimension a = 70 mm from the rear axle bushing fixture.

Open welded connections in area (2).

Fig 3: Identifying Rear Axle Bushing Fixture Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

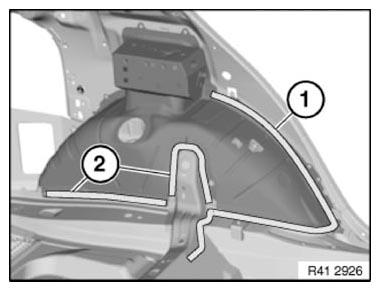

Saloon and Coupe only:

Open welded connections in area (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 5: Identifying Welded Connections And Components Area (Saloon And Coupe Only)

Courtesy of BMW OF NORTH AMERICA, INC.

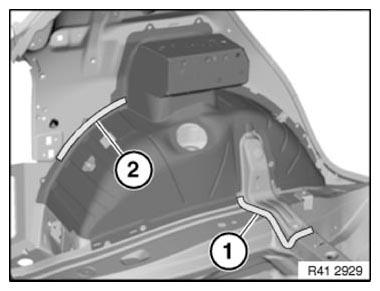

Touring only:

Open welded connections in area (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 6: Identifying Welded Connections And Components Area (Touring Only)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Storage shelf for saloon and coupe not shown for purposes of clarity.

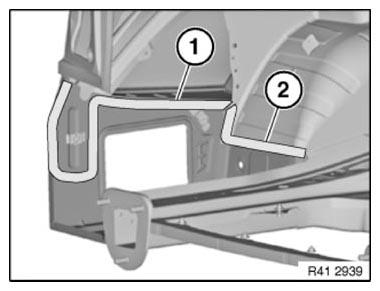

Open welded connections in areas (1) and (2).

Fig 7: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Storage shelf for saloon and coupe not shown for purposes of clarity.

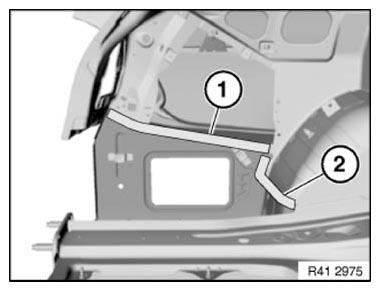

Open welded connections in area (1).

Installation note:

Additionally weld new part in this area (2).

Fig 8: Identifying Welded Connections And Weld Part Area

Courtesy of BMW OF NORTH AMERICA, INC.

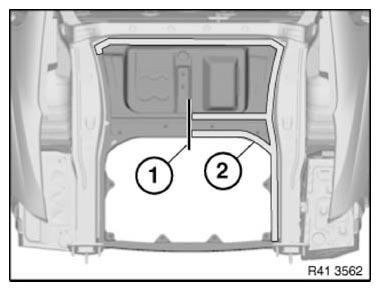

Mark severance cut (1) in the centre and disconnect.

Disconnect floor panel and cross member underneath.

Open welded connections in area (2).

NOTE: Storage shelf for saloon and coupe not shown for purposes of clarity.

Fig 9: Identifying Severance Cut And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
