Removal Of Luggage Compartment Floor

WARNING: This page is about a different variant/trim than selected.

Most of operation is described on the left side. Right side identical.

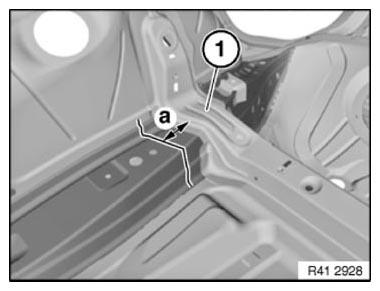

Mark severance cut in accordance with Dimension a and cut.

Dimension a = 40 mm behind side member support (1).

Fig 1: Identifying Luggage Compartment Floor Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

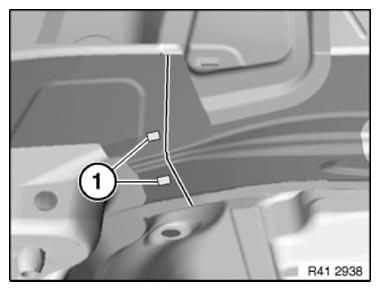

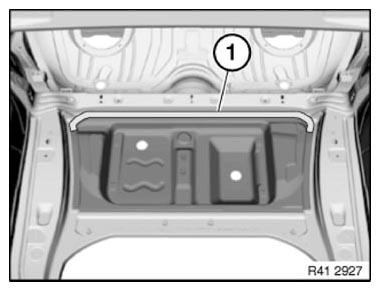

Mark severance cut (1) and cut.

Open welded connections in areas (2).

Installation note:

Weld new components in areas (3) additionally.

Fig 2: Identifying Severance Cut And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

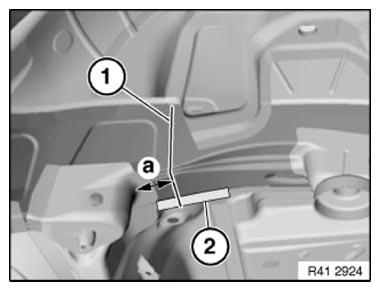

Mark severance cut (1) in accordance with dimension a and disconnect rear axle support.

IMPORTANT: Cut outer metal panel only.

Dimension a = 70 mm from the rear axle bushing fixture.

Open welded connections in area (2).

Fig 3: Identifying Rear Axle Bushing Fixture Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

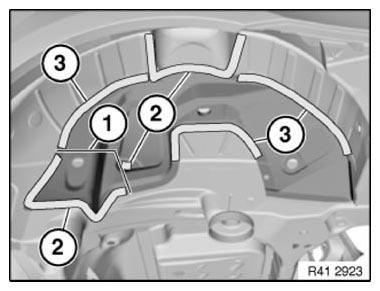

Saloon and Coupe only:

Open welded connections in area (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 5: Identifying Welded Connections And Weld Components Area (Saloon And Coupe Only)

Courtesy of BMW OF NORTH AMERICA, INC.

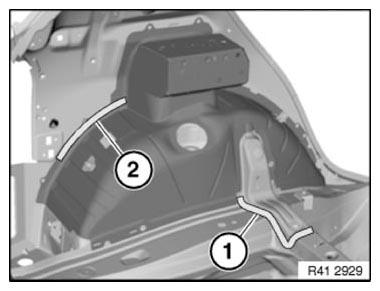

Touring only:

Open welded connections in area (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 6: Identifying Welded Connections And Weld Components Area (Touring Only)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The storage shelf of the Saloon and Coupe are not shown for purposes of clarity.

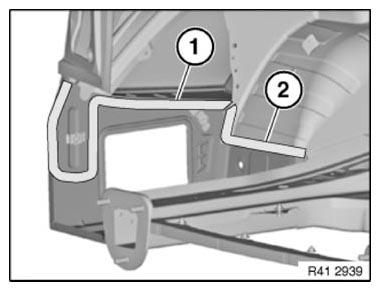

Open welded connections in areas (1) and (2).

Fig 7: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

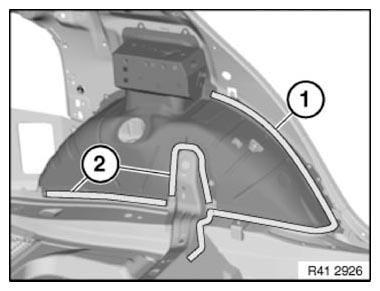

NOTE: The storage shelf of the Saloon and Coupe are not shown for purposes of clarity.

Open welded connections in area (1).

Installation note:

Additionally weld new part in this area (2).

Fig 8: Identifying Welded Connections And Weld Part Area

Courtesy of BMW OF NORTH AMERICA, INC.

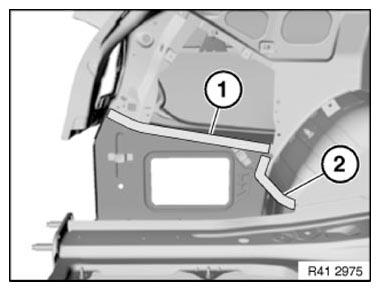

Open welded connections in area (1).

Fig 9: Identifying Welded Connections Area
