Removing Luggage Compartment Floor

WARNING: This page is about a different variant/trim than selected.

Carry over the work steps shown symmetrically to the other side of the car.

Mark severance cuts (1) at edge of 20 mm dia. bore hole.

Cut side member (2).

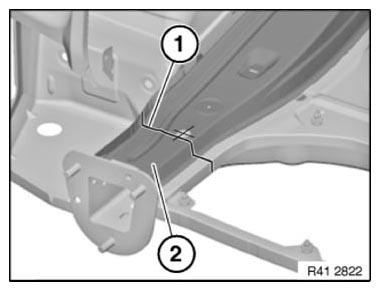

Fig 1: Identifying Severance Cuts And Side Member

G09838664

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts (1) and cut.

IMPORTANT: Cut only outer plates.

Open welded connections in areas (2) and remove luggage compartment floor (3).

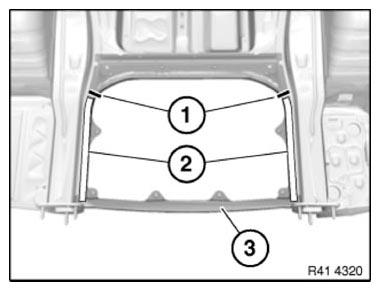

Fig 2: Identifying Luggage Compartment Floor And Welded Connections Areas

G09838665

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon and Coupe only:

Open welded connections in area (1).

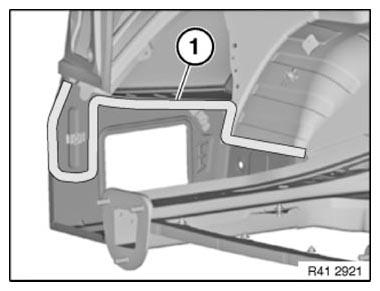

Fig 3: Identifying Welded Connections Area

G09838666

Courtesy of BMW OF NORTH AMERICA, INC.

Touring only:

Open welded connections in area (1).

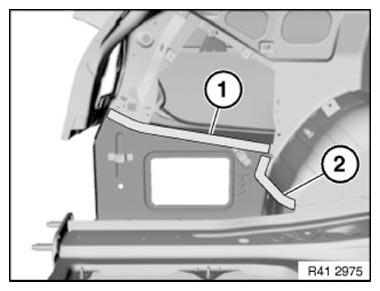

Fig 4: Identifying Welded Connections Area And Severance Cut

G09838667

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Mark severance cut (2) next to reinforcement (3) and disconnect.

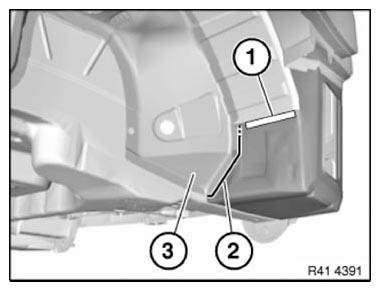

Fig 5: Identifying Reinforcement, Severance Cut And Welded Connections Area

G09838668

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove luggage compartment floor and side member.

NOTE: Side wall hidden for purposes of clarity.

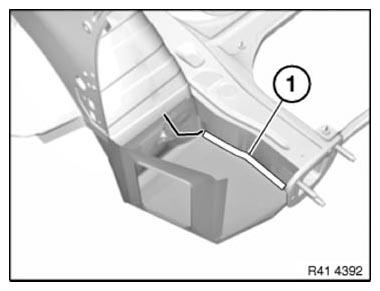

Fig 6: Identifying Welded Connections Area

G09838669

Courtesy of BMW OF NORTH AMERICA, INC.
