Preparation Of New Part, Bonding Technology

Mark severance cut on luggage compartment floor frame in accordance with severance cut on vehicle + 15 mm extra material and cut.

Mark severance cuts on outer luggage compartment floor in accordance with severance cuts on vehicle + 15 mm extra material and cut.

Adjust new part in combination with tail panel to fit and secure.

Saloon and Coupe only:

In area (1) set seven 4.2 mm dia. bore holes for blind rivets.

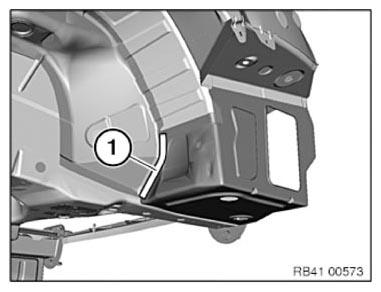

Fig 1: Identifying Bore Holes Area For Blind Rivets (Saloon And Coupe Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Touring only:

In areas (1) and (2) set six 4.2 mm dia. bore holes for blind rivets.

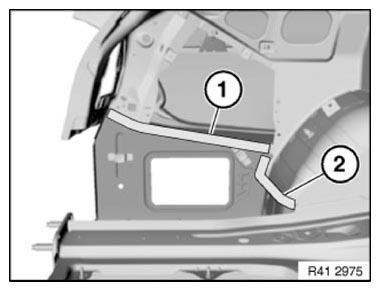

Fig 2: Identifying Bore Holes Area For Blind Rivets (Touring Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Set two 4.2 mm diameter bore holes for blind rivets in area (1).

Remove new parts and deburr bore holes.

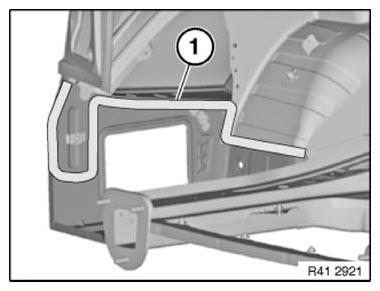

Fig 3: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.
