Installing Side Members

Adjust new parts to fit with alignment bracket or universal mounting.

Before welding in side member, also adjust tail panel, tailgate and rear lights to fit.

Weld REINFORCEMENT PLATES  at the severance cuts (1).

Cut side member (2).

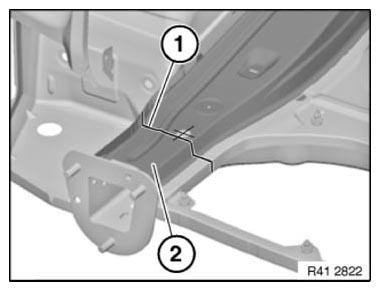

Fig 1: Identifying Severance Cuts At Side Member
