Installing Luggage Compartment Floor

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Luggage compartment floor frame:

Install luggage compartment floor (1) and rivet in the areas (2) with 8 punch rivetsN5.

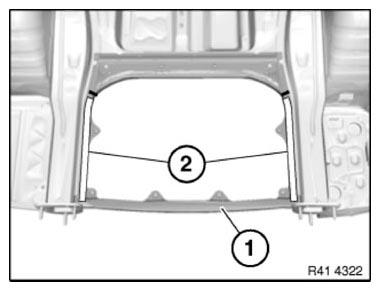

Fig 1: Identifying Luggage Compartment Floor And Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment floor, left and right:

Ensure to apply sufficient adhesive to the bonding surfaces when installing the new part!

Install new part and rivet with blind rivets.

In area (1) secure luggage compartment floor until adhesive has hardened at side member.

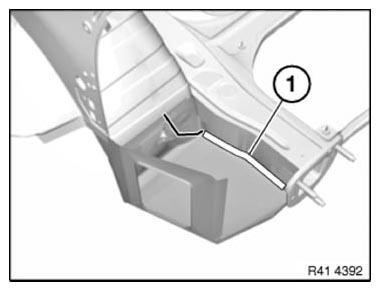

Fig 2: Ensure Adhesive Has Hardened At Side Member

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in areas (1), install 2 EMC SCREWS .

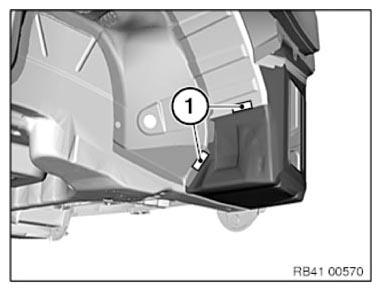

Fig 3: Identifying EMC Screws Adhesive Area

Courtesy of BMW OF NORTH AMERICA, INC.

Touring only:

After hardening of the adhesive, install 4 EMC screws in the areas (1).

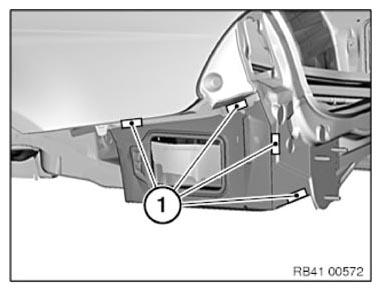

Fig 4: Identifying EMC Screws Areas (Touring Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Saloon and Coupe only:

After hardening of the adhesive, install 4 EMC screws in the areas (1).

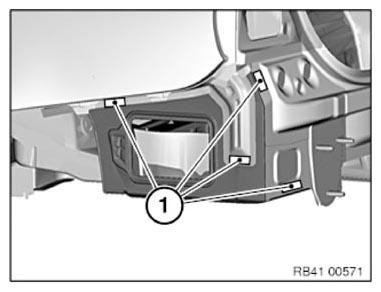

Fig 5: Identifying EMC Screws Areas (Saloon And Coupe Only)

Courtesy of BMW OF NORTH AMERICA, INC.
