41 5.... Front Side Doors Removal And Installation

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Do not damage adjoining body parts.

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Open door.

Release screw on connector frame.

Front door:

Tightening torque 41 51 4AZ .

Rear door:

Tightening torque 41 52 4AZ .

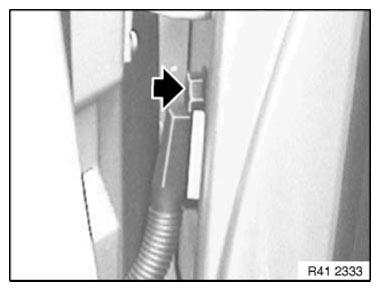

Fig 1: Locating Screw On Connector Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door retainer.

Front door:

Tightening torque 51 21 3AZ .

Rear door:

Tightening torque 51 22 3AZ .

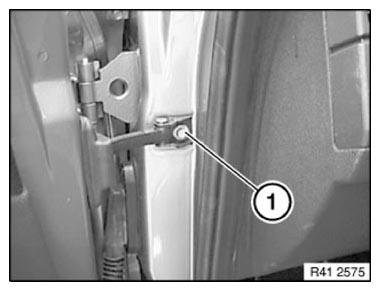

Fig 2: Identifying Screw On Door Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure door against falling out.

Release screws between both hinge elements at top and bottom.

Pull both screws out of hinges.

Front door:

Tightening torque 41 51 1AZ .

Rear door:

Tightening torque 41 52 1AZ .

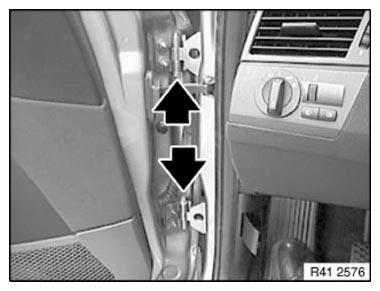

Fig 3: Pulling Screws Out Of Hinges

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out door sideways and place it on a suitable surface.

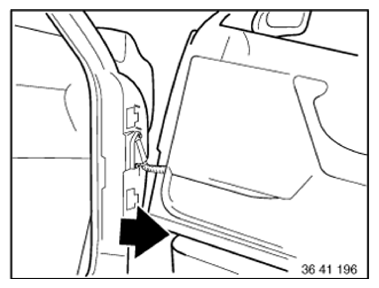

Fig 4: Pulling Out Door Sideways

Courtesy of BMW OF NORTH AMERICA, INC.

Pull plug connection from door pillar, unlock by pulling out bar and detach.

Installation:

If necessary, adjust DOOR .

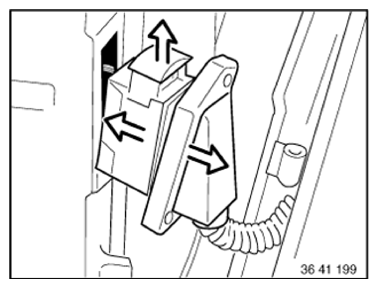

Fig 5: Pulling Plug Connection From Door Pillar

Courtesy of BMW OF NORTH AMERICA, INC.
