Hexagon/Straight Shank Rivet Nut (Up To Thread M12) With Hand Rivet Gun MB512

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: Follow manufacturer's operating instructions.
Make sure rivet nut correctly contacts component.

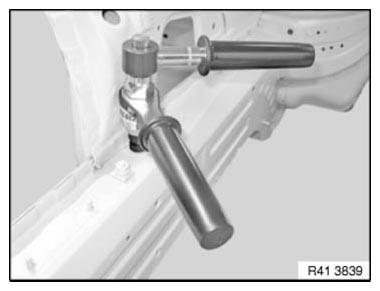

Fig 1: Setting Rivet Nut Using Hand Rivet Gun
G09838526Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: According to the manufacturer, the pictured tool is suitable up to an M12 thread
