41 00... Reinforcement Plate With Stud Bolt (Bonded): Notes

WARNING: This page is about a different variant/trim than selected.

In the case of a partial replacement piece, a body component is cut at a point described in the repair instructions.

A reinforcement plate is bonded in to ensure sufficient strength.

Reinforcement plates are available as new parts and must also be used (refer to ELECTRONIC PARTS CATALOGUE ).

NOTE: The following graphics serve as general illustrations of reinforcement plate repair work. They are applicable to sectional repairs in the outer skin area.

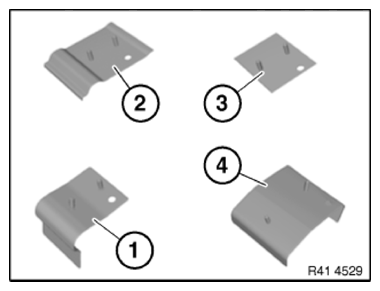

Overview of reinforcement plates:

Reinforcement plate, sill
Reinforcement plate, C-pillar
Reinforcement plate, universal
Reinforcement plate, C- or D-pillar
Lock nuts (not pictured)
- Plastic nut dia. 18 mm, part number 07 14 1 943 122
- Expansion nut dia. 22 mm, part number 07 14 7 169 847

  Fig 1: Overview Of Reinforcement Plates
  Courtesy of BMW OF NORTH AMERICA, INC.

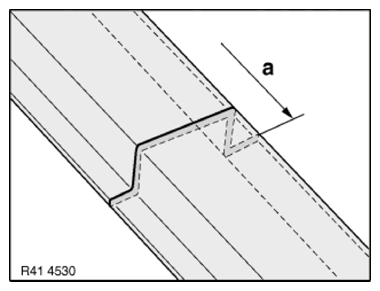

Mark component in accordance with dimension a and cut.

Fig 2: Identifying Reinforcement Plate Mark And Cut Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
