Preparation Of New Part

Cut new part (1) in accordance with cut on vehicle and if necessary adjust to fit with straightening attachment or universal mount.

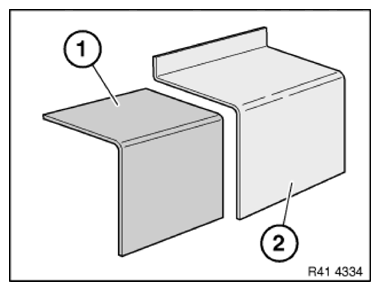

Fig 1: Identifying Reinforcement Plate Cut Part

Courtesy of BMW OF NORTH AMERICA, INC.

Make reinforcement plate (1) from trim of new part (2).

Length of reinforcement plate is 80 mm.

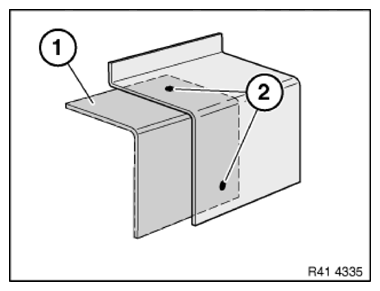

Fig 2: Identifying Reinforcement Plate And Trim Of New Part

Courtesy of BMW OF NORTH AMERICA, INC.

Slide reinforcement plate (1) half-way into component on body and fasten with 2 self-tapping screws (2).

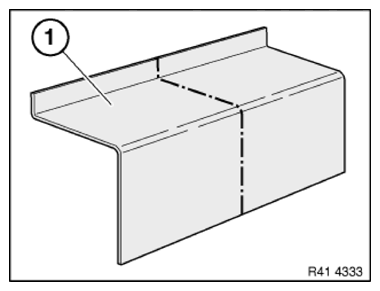

Fig 3: Identifying Reinforcement Plate And Self-Tapping Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part (1) to fit and set 4.3 mm dia. bore holes (2).

Remove new part again.

Release self-tapping screws (3).

Remove reinforcement plate.

Drill out bore holes (3) for screws to 4.3 mm dia.

Deburr all bore holes.

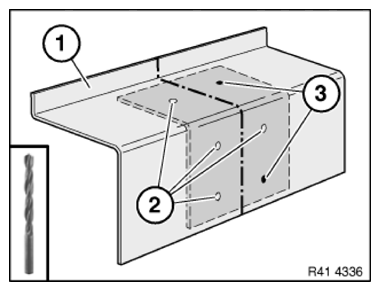

Fig 4: Identifying Reinforcement Plate, Self-Tapping Screws And Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.
