MSA Function Is Deactivated By

WARNING: This page is about a different variant/trim than selected.

Deactivate MSA by means of button (1) in passenger compartment
Open seat belt buckle and driver's door

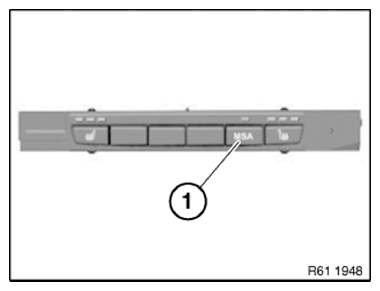

Fig 1: Identifying MSA Button
Courtesy of BMW OF NORTH AMERICA, INC.
Open engine bonnet/hood and ensure that engine hood/bonnet contact is not in workshop mode
- Workshop mode
  A = 10 mm
- Basic setting (engine hood/bonnet open)
  B = 7 mm

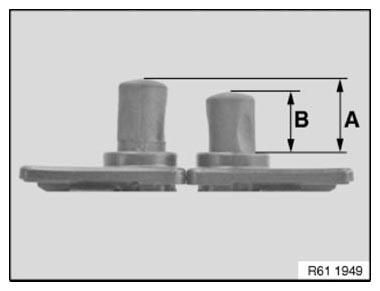

  Fig 2: Identifying Engine Hood/Bonnet Dimension
  Courtesy of BMW OF NORTH AMERICA, INC.

To make sure that the engine hood/bonnet contact is at the basic setting, if necessary press the hood/bonnet contact up to the limit position before starting work and slowly release.
