52 26 005 Removing and installing/replacing rear seat (through-loading)

WARNING: This page is about a different variant/trim than selected.

Unclip rear seat on left and right towards top.

Installation:

Feed seat belt buckles (1) into openings in rear seat.

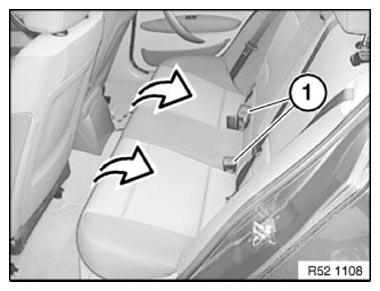

Fig 1: Lifting Out Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Release belt lock (1).

Feed middle rear lower belt fitting with belt lock out of rear seat.

Lift out rear seat.

Fig 2: Locating Belt Lock

Courtesy of BMW OF NORTH AMERICA, INC.
