51 23... Removing/installing ball sockets with clip
WARNING: This page is about a different variant/trim than selected.
WARNING:
Risk of injury! When installed, the gas pressurised shock absorber is under preload. Minimise preload as far as possible before removing.
IMPORTANT:
Never lift off ball socket with engaged retainer.

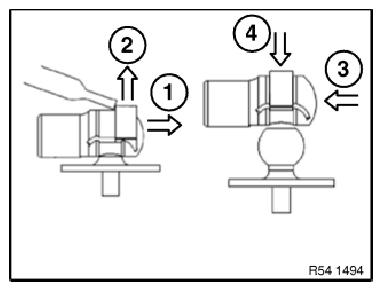

Disassembly/assembly:
- Push on retainer in direction of groove with screwdriver.
- Lift off ball socket from ball pin.
- Slide retainer back.
- Fit ball socket on ball stud and snap into place with force.
Installation:
Replace overstretched clips.
Pack grease into two opposite positions in socket. The grease spreads after installation on the ball pin all round in the ball socket.
