52 24 400 Replacing seat cover for rear seat

Special tools required:

• 52 0 050

Necessary preliminary tasks

• Remove REAR SEAT .

Unclip Isofix protective caps.

Installation:

Make sure Isofix protective caps are correctly engaged.

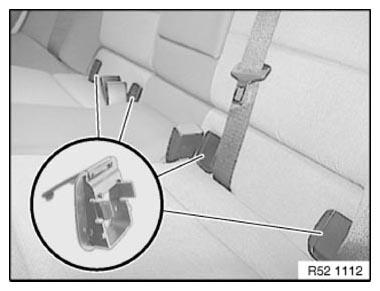

Fig 1: Identifying Isofix Protective Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out welt in area (1) with plastic wedge.

Unhook seat cover in area (2).

Fig 2: Lever Out Welt In Area With Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and padding:

• Release all retainers in marked area.
• Remove seat cover from padding.
• Remove remaining retainers from cover and padding
  Fig 3: Release Retainers In Marked Area

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new retainer (2) with special tool 52 0 050 and bend closed.

1. Padding
2. Retainer
3. Trim thread in padding
4. Trim thread in seat cover
5. Seat cover
   Fig 4: Identifying Padding, Retainer, Trim Thread Padding And Seat Cover

   Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

• Pull all trim wires out of seat cover
• If necessary, cut in take-up for trim wires of new cover.
• Push trim wires into new seat cover.
  Fig 5: Identifying Trim Wires In Seat Cover

  Courtesy of BMW OF NORTH AMERICA, INC.
