52 15 405 Replacing backrest cover for left or right front seat (sport/manual)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks

Version with seat heating only

Unfasten plug connection (1) and disconnect.

Disconnect cable straps.

Release wiring harness (3) from cable holders on seat mechanism.

IMPORTANT: Feed the wiring harness carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

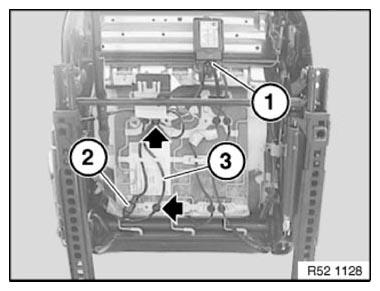

Fig 1: Removing Wiring Harness From Cable Holders On Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover (1) from backrest frame.

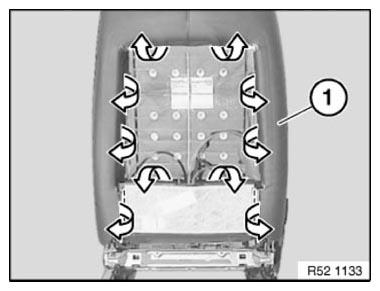

Fig 2: Disconnecting Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Pull backrest cover (1) off Velcro-type fastener on backrest frame.

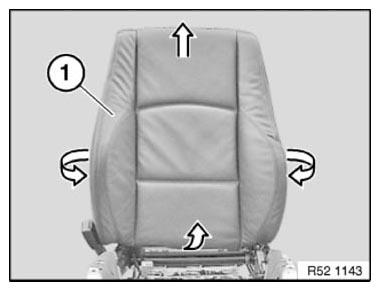

Fig 3: Pulling Backrest Cover Off Velcro-Type Fastener On Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off backrest cover (1) with padding sideways and towards top from backrest frame.

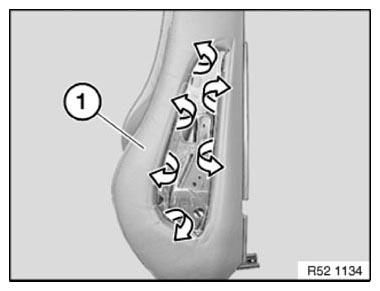

Fig 4: Pulling Off Backrest Cover With Padding Sideways

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers in marked area.

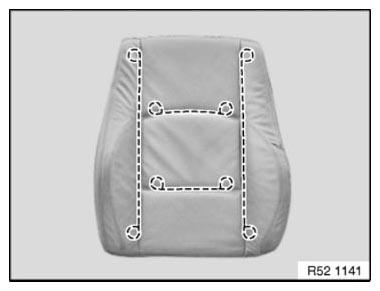

Fig 5: Retainers In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover from padding.

NOTE: Remove all remnants of retainers from backrest cover and padding.

Installation:

Bend new retainer (2) with special tool 52 0 050 .

Padding
Retainer
Trim thread in support
Trim wire in backrest cover
Back-rest cover

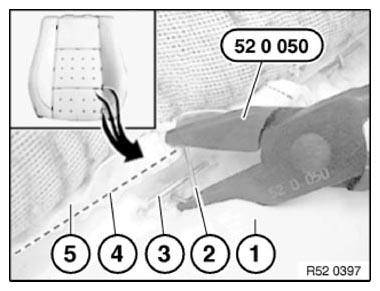

Fig 6: Bending Retainer With Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of backrest cover

Pull trim threads out of backrest cover.

Cut new backrest cover to size and insert trim threads.

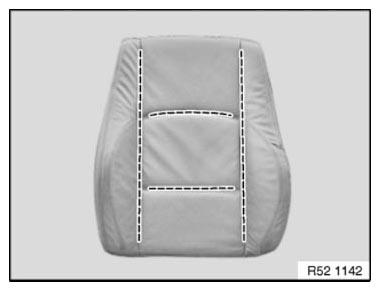

Fig 7: Identifying Trim Threads On Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.
