52 15 403 Removing and installing/replacing thigh support cover on front seat (sport/manual)

WARNING: This page is about a different variant/trim than selected.

Release thigh support (1) and move forward.

Lever welt of seat cover (2) out of thigh support.

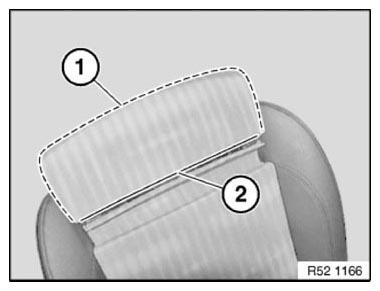

Fig 1: Removing Welt Of Seat Cover Out Of Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover welt in marked area (1).

Disengage trim thread in marked area (2) from thigh support.

Remove cover with padding.

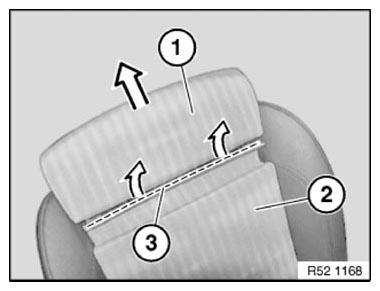

Fig 2: Lever Out Cover Welt

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover (1) off padding (2).

Fig 3: Pulling Cover Off Padding

Courtesy of BMW OF NORTH AMERICA, INC.
