52 13 040 Removing and installing/replacing outer cover on left or right front seat backrest (normal/manual)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks

NOTE: Picture shows installed seat by way of example.

Raise lock (3) and lever out handle

with special tool 00 9 317 .

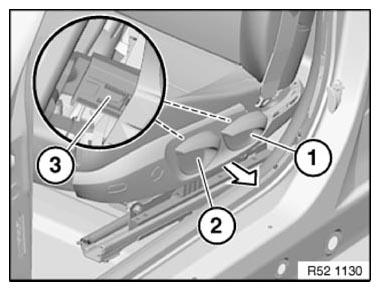

Fig 1: Raising Lock And Lever Out Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 10 6AZ .

NOTE: Trim (2) is engaged in marked area.

Press lock (3) and pull trim (2) off seat mechanism.

If necessary, lever out carefully with special tool 00 9 317 .

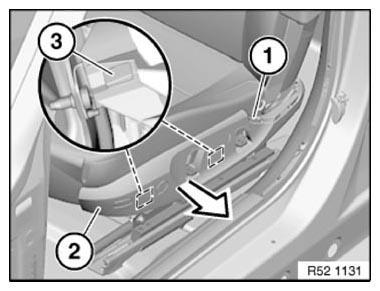

Fig 2: Pulling Trim Off Seat Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, unlock plug connection (1) for backrest width adjustment and disconnect.

If necessary, unlock plug connection (2) for lumbar support and disconnect.

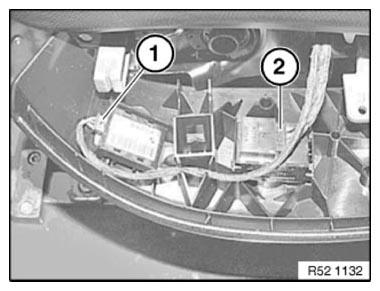

Fig 3: Unlock Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove backrest width adjustment switch and lumbar support switch.

Installation:

Make sure backrest width adjustment and lumbar support switches are correctly engaged.
