52 16 048 Remove or install thigh support at the front seat (sport/electric) on the left or right

WARNING: This page is about a different variant/trim than selected.

Unlock and move thigh support (1) as far forward as possible.

Lever out the welt (3) from the seat cover (2) from the thigh support (1).

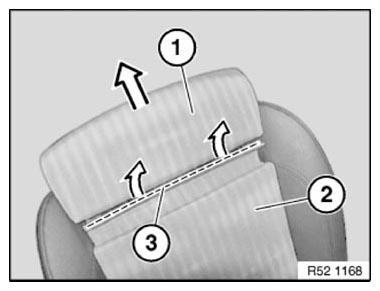

Fig 1: Removing Welt From Seat Cover And Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

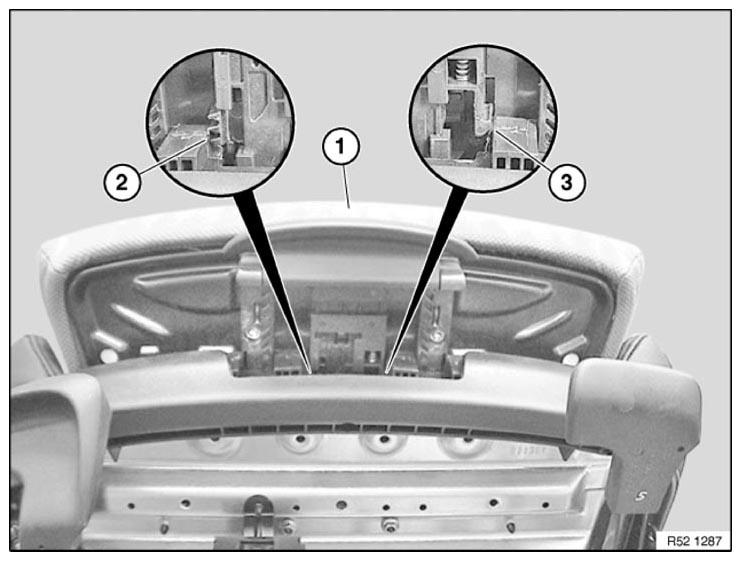

Fig 2: Identifying Thigh Support Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Do not completely extend the thigh support to the end stop.

Keep Actuation (1) pressed to unlock the centering (2).

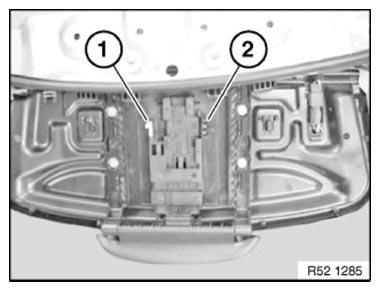

Fig 3: Pressing Actuation To Unlock Centering

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise the end stop (3) for the thigh support with a screwdriver and pull the thigh support toward the front out of the guide rails at the same time.

View of thigh support mechanism:

End stop for thigh support
Locking mechanism for the thigh support

View seat mechanism:

3. Guide rail on seat with depth retainer
4. Guide rail on seat with end stop

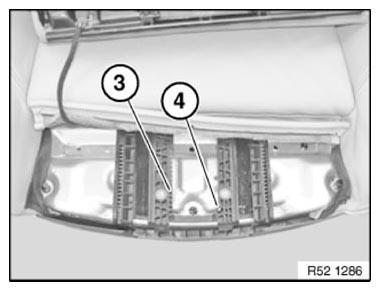

Fig 4: Identifying Guide Rail On Seat With Depth Retainer And End Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

NOTE: Check guide rails (2) and adjusting mechanism (3) for damage.

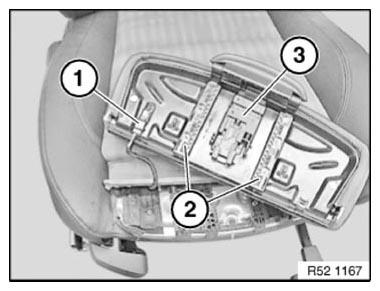

Fig 5: Identifying Plug Connection, Guide Rails

Courtesy of BMW OF NORTH AMERICA, INC.
