52 14 040 Removing and installing/replacing outer cover on left or right front seat (normal/electric)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

NOTE: Image shows on installed seat by way of example.

Move backrest to full rearward position.

Unclip release tab (2) for belt end fitting trim (1) with plastic wedge.

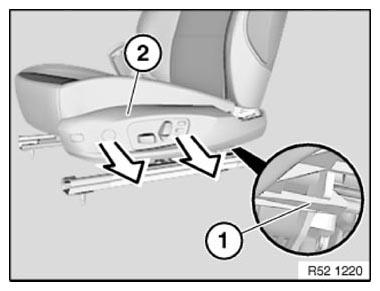

Fig 1: Unclipping Release Tab For Belt End Fitting Trim With Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

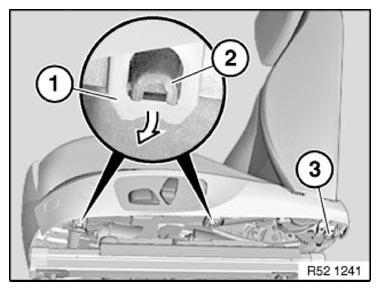

Release screw or latch mechanism (3).

Lever tabs (1) out of holders (2).

Fig 2: Removing Screw/Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover (1) with support section (2) could come free of the seat mechanism in the front area.

Carefully pull cover (1) with support section (2) off the seat mechanism in the front area.

Press release tab (3) with a screwdriver and disconnect the cover from the support section.

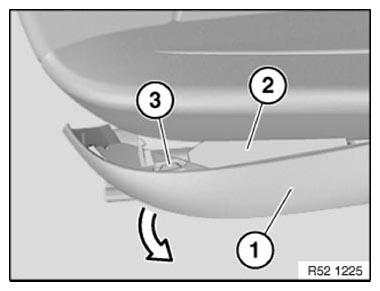

Fig 3: Disconnecting Cover From Support Section

Courtesy of BMW OF NORTH AMERICA, INC.

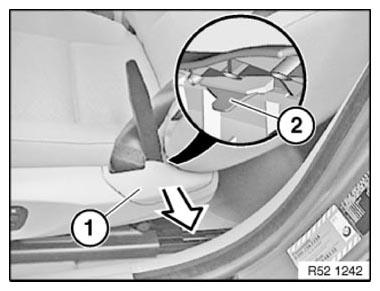

Lift and unlock tab (1).

Reach between seat cushion and cover (2) and pull cover off the support section.

Fig 4: Pulling Cover Off Support Section

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections:

Operating unit
Lumbar support
Seat backrest width adjustment

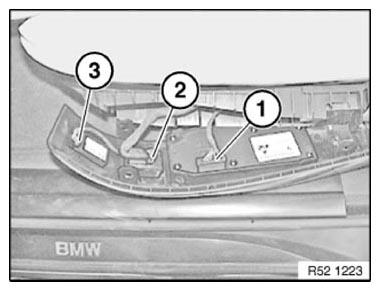

Fig 5: Identifying Operating Unit, Lumbar Support, Seat Backrest Width Adjustment
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips and tabs of the cover must not be damaged.

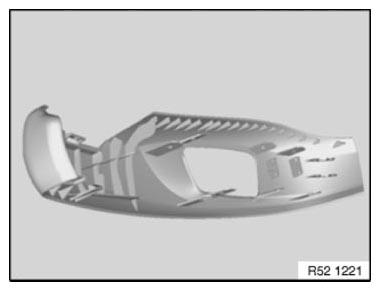

Fig 6: Identifying Retaining Clips And Tabs Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

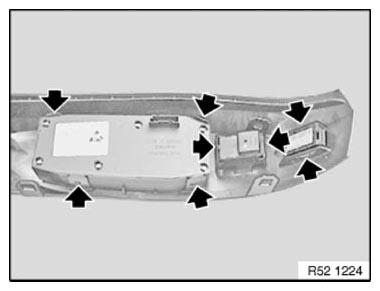

Unlock latch mechanisms of the switch housings and remove switch from cover.

If necessary, cut out missing apertures for lumbar support using a suitable tool.

Fig 7: Unlocking Latch Mechanisms Of Switch Housings

Courtesy of BMW OF NORTH AMERICA, INC.
