52 14... Removing and installing carrier for outer cover on left or right front seat (electric)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Remove OUTER COVER .

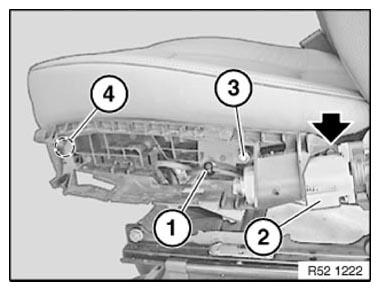

Detach cable strap (1).
Unlock and disconnect plug connections (2) on servodrive.
Unscrew bolt (3).
Tightening torque 52 10 4AZ .
Unclip carrier in marked area and remove.
Installation:
Replace cable strap.
Make sure carrier is correctly seated on seat mechanism.
