52 13 021 Removing and installing/replacing flexmat on left or right front seat

Necessary preliminary tasks

• Remove padding for front seat  . See 52 15 400 REPLACING SEAT COVER FOR LEFT OR RIGHT FRONT SEAT (SPORT/MANUAL)  or 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Cut all cable ties and disengage wiring harnesses from flexmat.

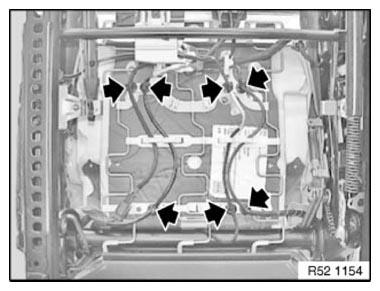

Fig 1: Locating Wiring Harnesses At Flexmat

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage flexmat (1) at front.

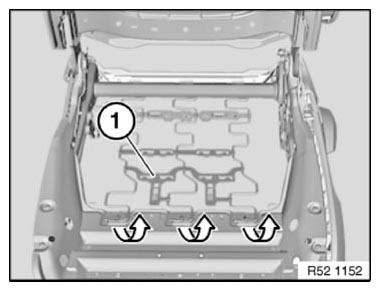

Fig 2: Disconnecting Flexmat At Front

Courtesy of BMW OF NORTH AMERICA, INC.

Swing flexmat (1) down and disengage from seat frame.

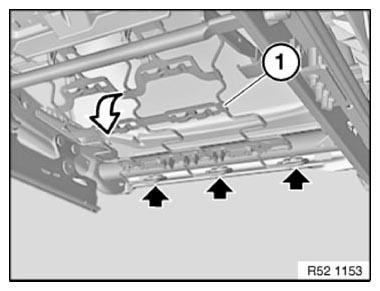

Fig 3: Disconnecting Flexmat Down From Seat Frame

Courtesy of BMW OF NORTH AMERICA, INC.
