31 35 021 Replacing both rubber mounts of stabiliser mounting on front axle support (all-wheel drive vehicle)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Remove STABILISER FROM FRONT AXLE SUPPORT and set down on the track rods.

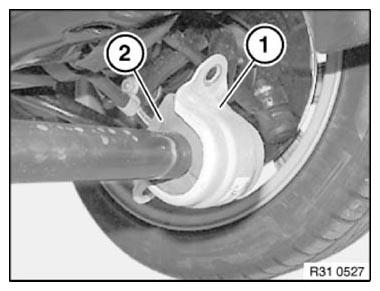

Remove retaining bracket (1) and rubber mount (2) on both sides.
Installation note:
Keep retaining bracket (1), rubber mount (2) and anti-roll bar clean and free from oil and grease.
