Version B

WARNING: This page is about a different variant/trim than selected.

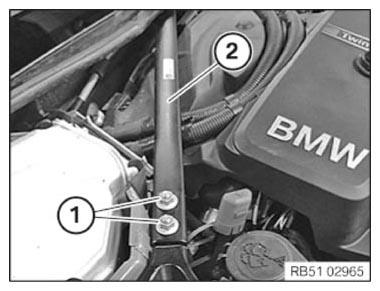

Loosen the nuts (1) and remove the strut brace (2).

Tightening torque 51 71 19AZ .

Fig 1: Identifying Strut Brace And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

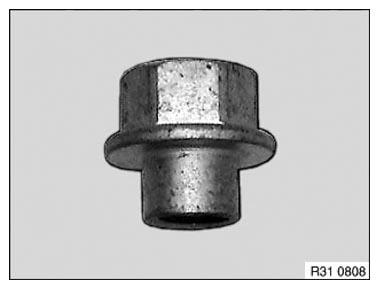

IMPORTANT: The nuts shown must be used to ensure the screw connection of the strut brace ring is correct.

Fig 2: Identifying Strut Brace Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

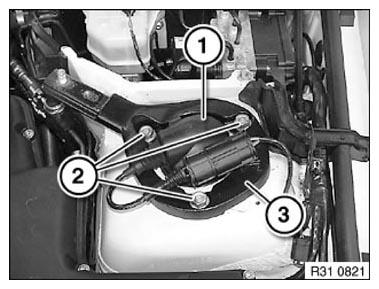

Unclip protective cap (1) and disconnect plug connection underneath.

Slacken nuts (2) and remove the strut brace ring (3).

Tightening torque 31 31 1AZ .

Installation note:

Make sure the protective cap (1) is correctly seated.

Replace nuts (2).

Fig 3: Identifying Protective Cap, Strut Brace Ring Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
