51 71 371 Removing and installing/replacing trailing link on left or right spring strut dome: Notes
WARNING: This page is about a different variant/trim than selected.
Special tools required:
IMPORTANT:
Risk of damage!
Driving without the tension strut is not permissible, as the body can be damaged.
Tension strut bolts must be tightened to torque and then tightened down with special tool 00 9 120 .
Driving without the tension strut is not permissible, as the body can be damaged.
Tension strut bolts must be tightened to torque and then tightened down with special tool 00 9 120 .
IMPORTANT:
Risk of damage!

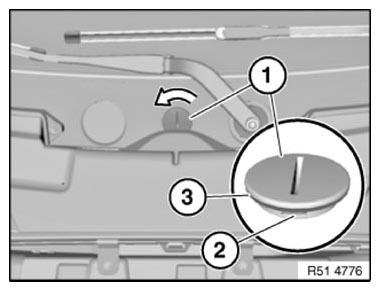

Latch mechanism (2) and gasket (3) of the cover (1) must not be damaged.
Even minor damage to the cover (1) can lead to water ingress; replace cover (1) if necessary.
Latch mechanism (2) and gasket (3) of the cover (1) must not be damaged.
Even minor damage to the cover (1) can lead to water ingress; replace cover (1) if necessary.
NOTE:
Cover (1) available in two versions:
- Turn cover (with notch) about 45° to the left
- Disengage cover (without notch) in upward direction
Remove cover (1) and release screw underneath.
