31 60... Notes on removing and installing Low Profile band clamps

WARNING: This page is about a different variant/trim than selected.

Special tools required:

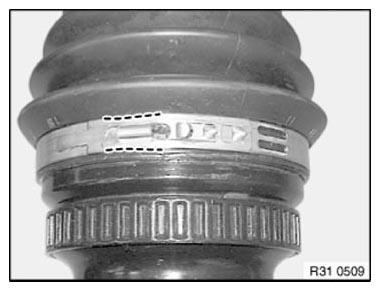

IMPORTANT: During removal Low Profile band clamp (dotted line) is overstretched and must not be reused!

Fig 1: Identifying Overstretched Low Profile Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Removing

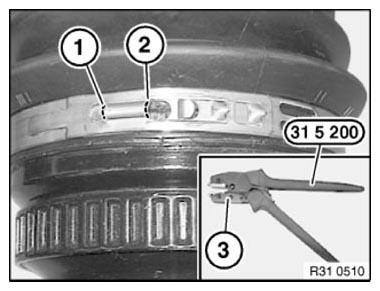

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

Fig 2: Placing Special Tool On Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

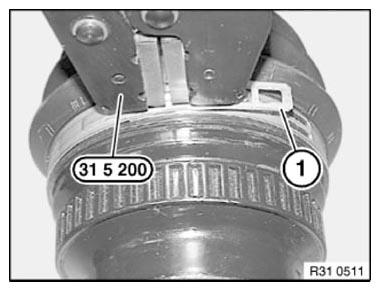

Compress Low Profile band clamp with special tool 31 5 200 until end of band clamp (1) lifts up.

Relieve tension on special tool and remove Low Profile band clamp.

Fig 3: Compressing Low Profile Band Clamp Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly

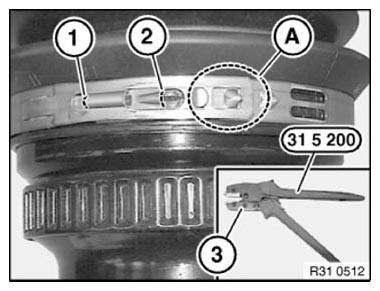

Position Low Profile band clamp in installation position (A) on gaiter.

Place special tool 31 5 200 on tabs (1, 2).

NOTE: Make sure that the movable piece (3) of the special tool is placed on lug (1).

Fig 4: Positioning Low Profile Band Clamp On Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Check and if necessary correct positions of gaiter and Low Profile band clamp.

Compress Low Profile band clamp with special tool 31 5 200 and press on end of band clamp (1).

Relieve tension on special tool and remove.

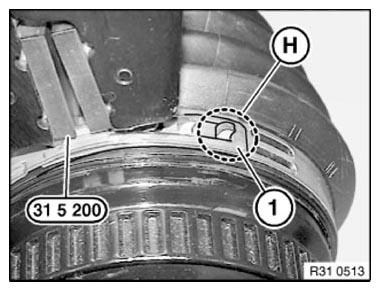

Check hook fastener (H); if necessary, repeat operation with new Low Profile band clamp.

Fig 5: Checking Hook Fastener

Courtesy of BMW OF NORTH AMERICA, INC.
