31 51 020 Replacing shaft seal for right output shaft

WARNING: This page is about a different variant/trim than selected.

Special tools required:

31 5 130

Necessary preliminary tasks

REMOVE right output shaft.

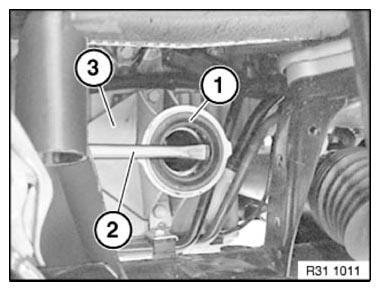

Lever shaft seal (1) with a screwdriver (2) out of bearing support (3).

Fig 1: Removing Bearing Support Shaft Seal Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

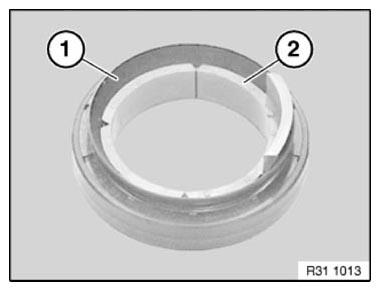

NOTE: Protective grommet (2) serves to protect the sealing lips of shaft seal (1) from being damaged when the output shaft is inserted into the bearing support.

Fig 2: Identifying Protective Grommet And Shaft Seal Sealing Lips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

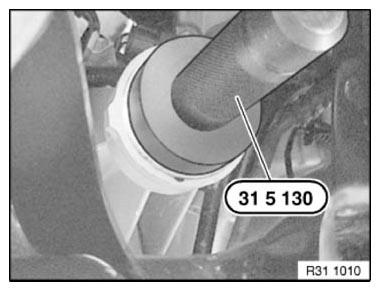

Drive in shaft seal with special tool 31 5 130 up to limit position.

Fig 3: Installing Shaft Seal Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
