Section 37 (Front Axle - Repair - E90)
>>
General
>>
31..... Layout of spring strut shock absorber
31..... Layout of spring strut shock absorber
WARNING:
This page is about a different variant/trim than selected.

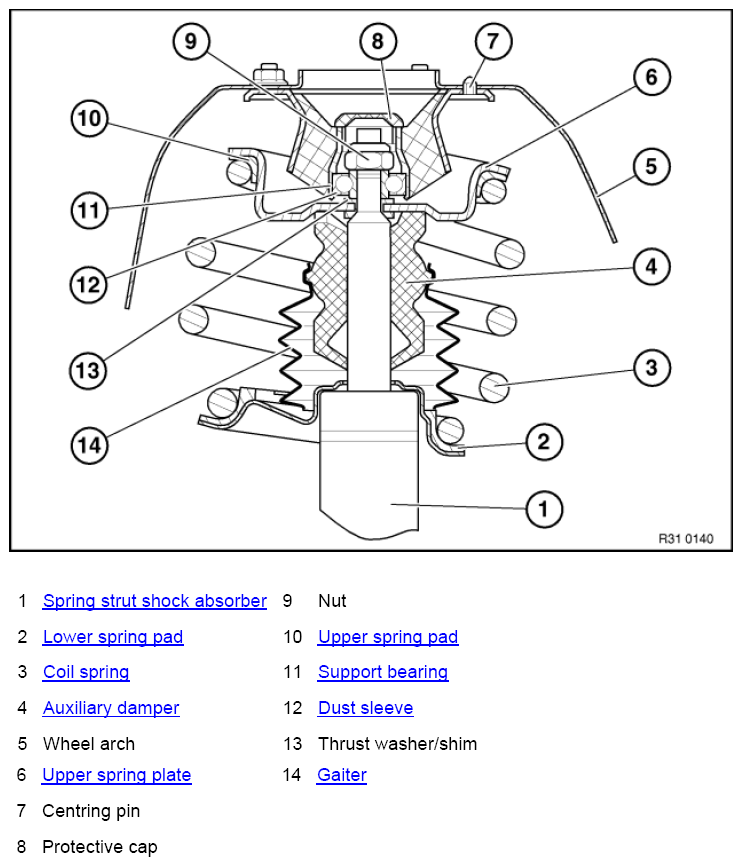

Fig 1: Identifying Spring Strut Shock Absorber Components
Courtesy of BMW OF NORTH AMERICA, INC.
