31 00... Front axle + steering (AWD): wheel/chassis alignment check must be carried out after the following work

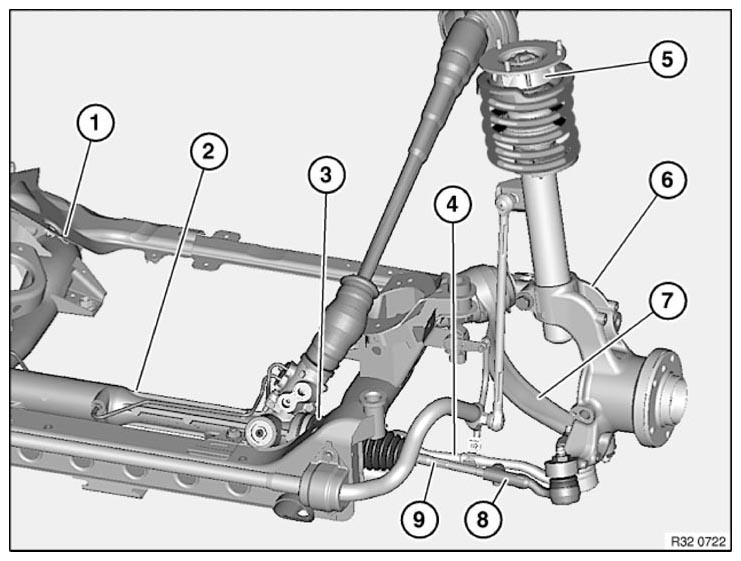

Fig 1: Identifying Front Axle And Steering (AWD) Wheel Components

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check  . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD must be carried out after the following work:

• Release of following screw/bolt connections:
  • Steering gear to front axle carrier
  • Control arm to front axle carrier
  • Compression strut to front axle carrier
  • Support bearing to body (if centering pin is missing)
  • Tie rod end to tie rod
• Replacement of following parts:
  1. Front axle carrier
  2. Steering gear
  3. Gaiter (if the tie rod end has to be screwed off)
  4. Control arm
  5. Support bearing (if centering pin is missing)
  6. Swivel bearing
  7. Compression strut or compression strut rubber mount
  8. Tie rod end
  9. Tie rod
