Two-part underbody protection
WARNING: This page is about a different variant/trim than selected.

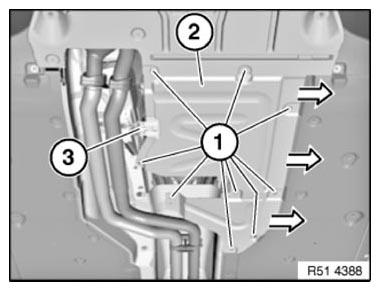

Release screws (1).
Detach underbody protection (2) from bracket (3) and remove.
Installation:
Ensure correct seating.
Centre underbody protection (2) and tighten down screws (1).
