Single-part underbody protection (except E90/E91/E92 AWD)

WARNING: This page is about a different variant/trim than selected.

Release screws (1).

Pull underbody protection (2) in direction of arrow out of bracket (3).

Installation:

Ensure correct seating.

Centre underbody protection (2) and tighten down screws (1).

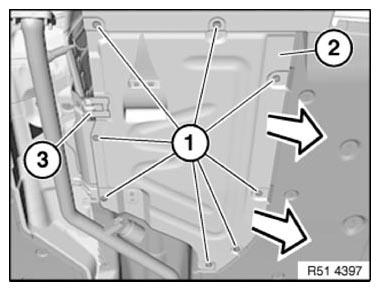

Fig 1: Removing Underbody Protection Out Of Bracket (Single-Part Underbody)
G09837678Courtesy of BMW OF NORTH AMERICA, INC.
