Single-part underbody protection (E90/E91/E92 AWD)
WARNING: This page is about a different variant/trim than selected.

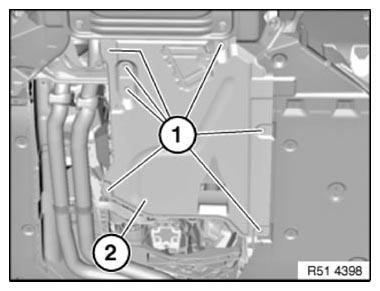

Release screws (1).
Remove underbody protection (2) downwards.
Installation:
Ensure correct seating.
Centre underbody protection (2) and tighten down screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.
