51 47 490 Removing and installing/replacing front underbody protection (AWD)
WARNING: This page is about a different variant/trim than selected.
NOTE:

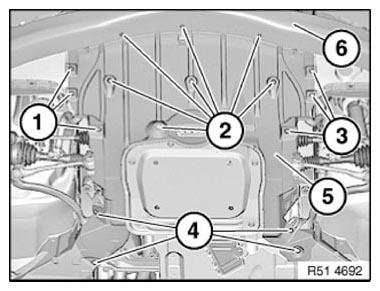

Illustration created using 330xi as an example. There may be differences in detail in the case of other vehicle models.
Remove screws (1 to 4).
Pull underbody protection (5) forward under bumper trim (6).
Installation:
Centre underbody protection (5) and tighten down screws (1 to 4).
