31 51 060 Replacing O-ring for front differential on right

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Remove O-ring (1) with a suitable tool from front differential.

Installation:

Insert O-ring (1) in groove and coat with front differential oil.

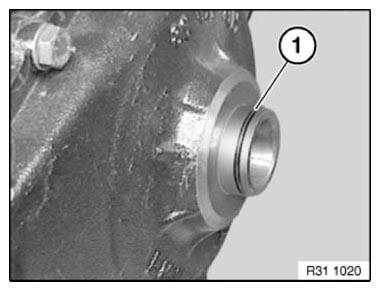

Fig 1: Identifying Front Differential O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.
