31 51 015 Replacing shaft seal for left output shaft

WARNING: This page is about a different variant/trim than selected.

Special tools required:

31 5 130

Necessary preliminary tasks

Remove LEFT OUTPUT SHAFT .

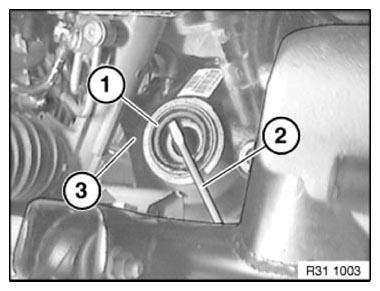

Lever shaft seal (1) with a screwdriver (2) out of front differential (3).

Fig 1: Removing Shaft Seal Out Of Front Differential Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

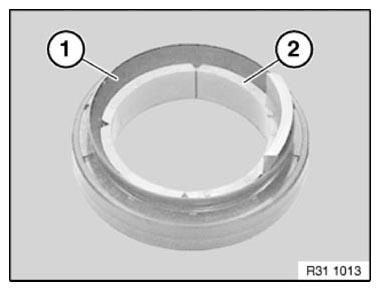

NOTE: Protective sleeve (2) serves to protect the sealing lips of shaft seal (1) from being damaged when the output shaft is inserted into the front differential.

Fig 2: Identifying Shaft Seal Sealing Lips And Protective Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

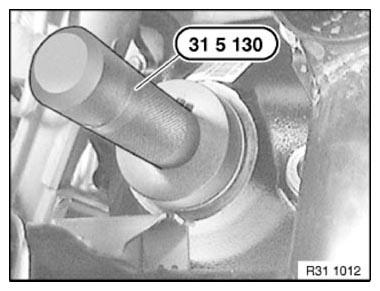

Drive in shaft seal with special tool 31 5 130 as far as it will go.

Fig 3: Identifying Shaft Seal Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check FRONT DIFFERENTIAL OIL LEVEL , correct if necessary.
