54 12 211 Removing and installing complete glass slide/tilt sunroof

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

IMPORTANT: A second person is required to help in removing the glass slide/tilt sunroof.

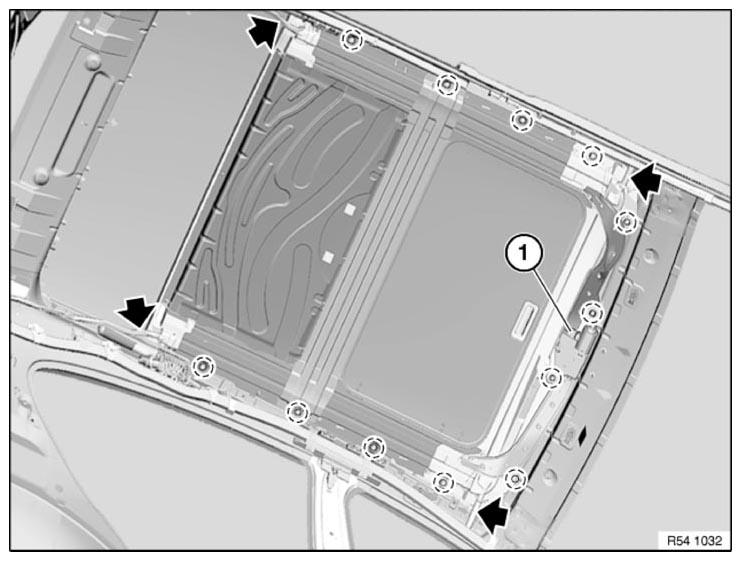

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.
Detach water drain hoses.
Helper must hold glass slide/tilt sunroof to prevent it falling out.
Release screws in marked area and carefully lower glass slide/tilt sunroof.
Tightening torque: 54 12 2AZ .

IMPORTANT: Do not damage any surrounding parts when removing the glass slide/tilt sunroof.

IMPORTANT: Mixed installation of the Velcro-type connection is not permitted.

In order to avoid mixed installation, remove the old Velcro-type material and attach the new Velcro-type material.

New and old Velcro-type fasteners differ in color:

Black: Old Velcro-type fastener

White: -New Velcro-type fastener

Only black/black or white/white pairings are permitted.

Fig 2: Locating Glass Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, remove fabric adhesive tape.

To stop grating noises, secure all screws (1) prior to installation with plastic washers (2).

If the standard screws can no longer grip, use "repair screws" (have larger threads).

IMPORTANT: Do not crush any cables when fitting the glass slide/tilt sunroof.
INITIALIZE glass slide/tilt sunroof.

Fig 3: Identifying Plastic Washers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
