Brake P 4.40 (Brembo) 2-piston fixed caliper brake (model ranges: 1-Series, 3-Series)

WARNING: This page is about a different variant/trim than selected.

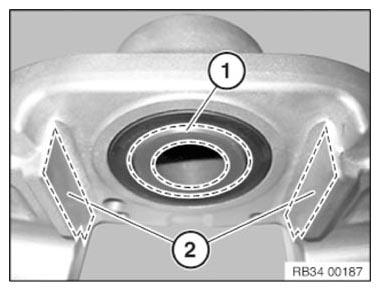

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

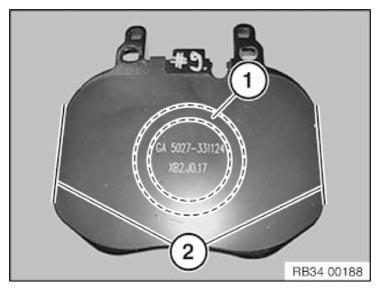

Fig 1: Identifying Brake Pad And Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

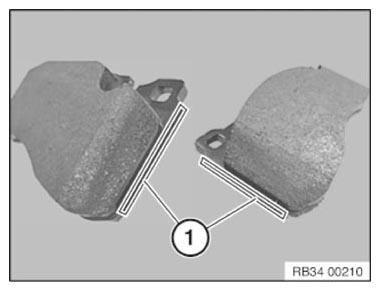

Fig 2: Identifying Brake Pad Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 3: Identifying Brake Pad Paste Coating Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.
