34 00 050 Bleeding brake system with DSC: Notes
WARNING: This page is about a different variant/trim than selected.
When replacing or repairing, observe the filling and bleeding instructions for the following parts:
- Tandem brake master cylinder.
- Hydraulic unit.
- Components and connecting lines which are fitted between these assemblies.
Connect bleeder unit with max. 2 bar filling pressure.
A second person is needed to help carry out this work.

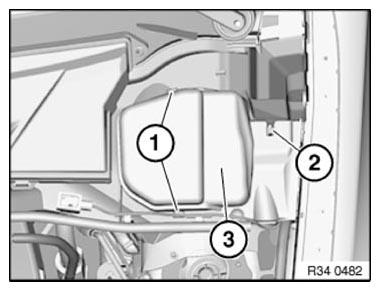

Unclip retaining tabs (1).
Pull cover (3) out of guide (2) and remove.
Connect DIS.
Select path: Service functions - Chassis/Suspension - Traction control systems - Bleeding procedure.

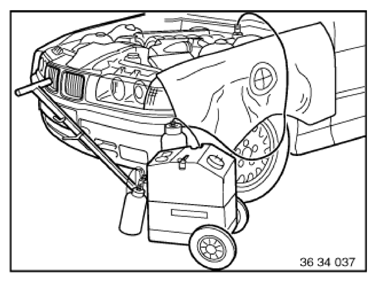

Connect brake fluid changer to expansion tank and switch on.
IMPORTANT:
Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.
Charging pressure should not exceed 2 bar.
Use only BMW-approved brake fluids, see BRAKES - OPERATING FLUIDS .
