Fully rinse the brake system

WARNING: This page is about a different variant/trim than selected.

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Follow same procedure on rear left, front right and front left wheel brake.

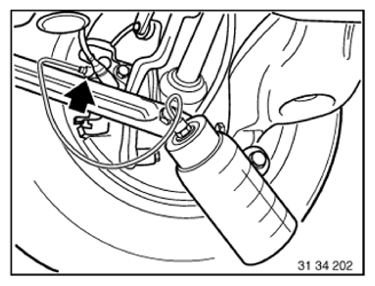

Fig 1: Connecting Bleeder Hose (Fully Rinse Brake System)
G09838129Courtesy of BMW OF NORTH AMERICA, INC.
