34 00 025 Replacing fluid in brake system

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: When carrying out repairs to the brake system, follow the procedure set out in BLEEDING BRAKE SYSTEM WITH DSC .

Use only BMW-approved brake fluids, see BRAKES - OPERATING FLUIDS .

Unclip retaining tabs (1).

Pull cover (3) out of guide (2) and remove.

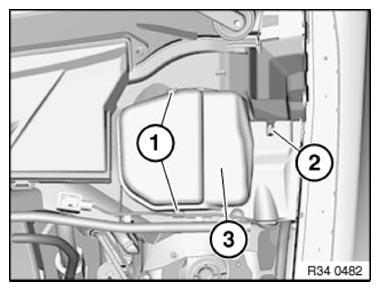

Fig 1: Identifying Brake System Cover, Guide And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Connect brake fluid changer to expansion tank and switch on.

NOTE: Check relevant equipment manufacturer's operating instructions for each device.
Charging pressure should not exceed 2 bar.

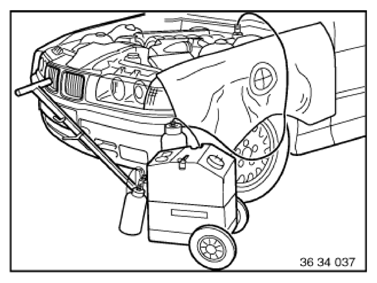

Fig 2: Connecting Brake Fluid Changer To Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Fully rinse the brake system

Connect bleeder hose with collecting tray to bleeder valve on rear right brake caliper.

Open bleeder valve and purge until clear, bubble-free brake fluid emerges.

Close vent valve.

Follow same procedure on rear left, front right and front left wheel brake.

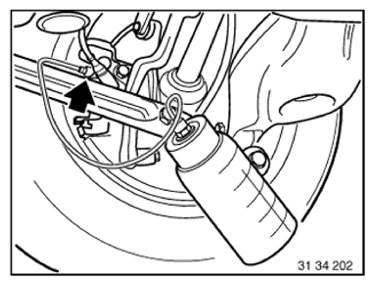

Fig 3: Connecting Bleeder Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The clutch slave cylinder must also be scavenged in vehicles with manual transmissions.

Switch off brake fluid changer and remove from expansion tank.

Check brake fluid level. If necessary, top up/draw off to max. level.

Close expansion tank.

NOTE: Pay attention to rubber seal (1) in sealing cap.

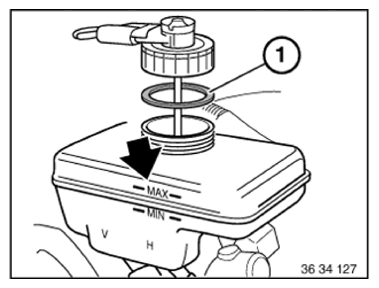

Fig 4: Locating Brake Fluid Tank Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:
