Head airbag installation summary

WARNING: This page is about a different variant/trim than selected.

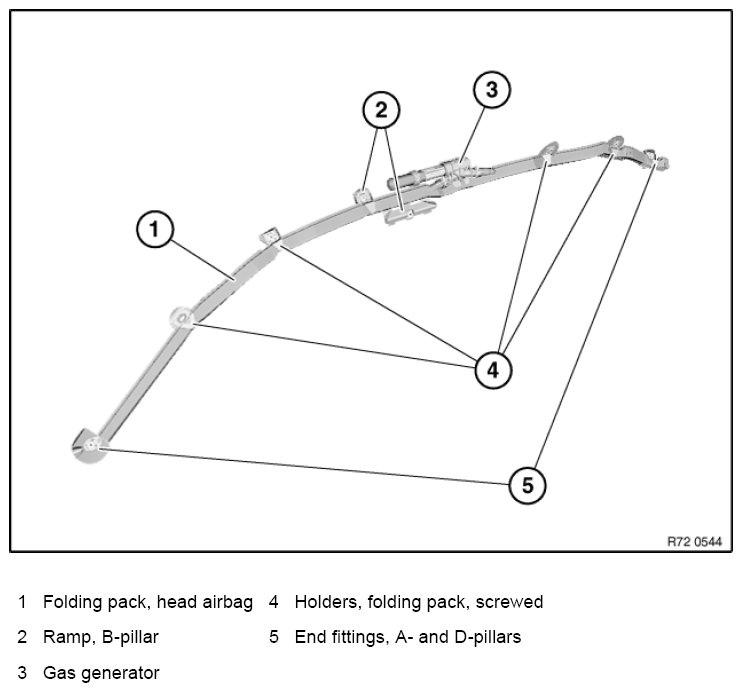

Fig 1: Identifying Head Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on end fitting.

Tightening torque 72 12 05AZ .

Release screw (2) on folding pack holder.

Tightening torques 72 12 04AZ .

Folding pack holder (3) is screwed to trim for roof pillar at front.

Installation:

If screws (1...3) slip, coat them with Loctite.

If necessary, lever out clip-mounted holder.

Fig 2: Identifying Pack Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, slide wiring harness (2) to one side to release screw (1) on folding pack holder.

Tightening torque 72 12 04AZ .

Release screw (3) from folding pack holders.

Tightening torques 72 12 04AZ .

Installation:

If screws (1) and (3) slip, coat them with Loctite.

If necessary, lever out clip-mounted holder.

Fig 3: Identifying Slide Wiring Harness And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock PLUG CONNECTION (4) and disconnect.

Release screws (1) on B-pillar ramp.

Tightening torque 72 1206AZ .

Unscrew bolt (3).

Tightening torque 72 12 03AZ .

Remove gas generator (5) with head airbag.

Fig 4: Identifying Gas Generator And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
