72 12 004 Removing and installing/replacing knee airbag module for driver protection

WARNING: This page is about a different variant/trim than selected.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE CABLE
REMOVE light operator unit

Release screws (1).

Feed out trim panel for pedal mechanism (2) from marked area (3) and set down towards bottom.

Installation note:

Make sure trim panel is correctly fitted (marked area).

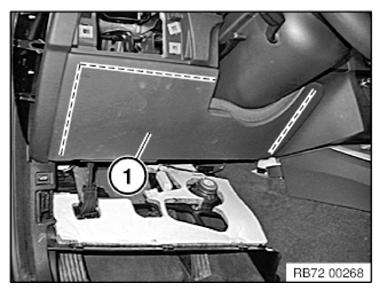

Fig 1: Identifying Pedal Mechanism And Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

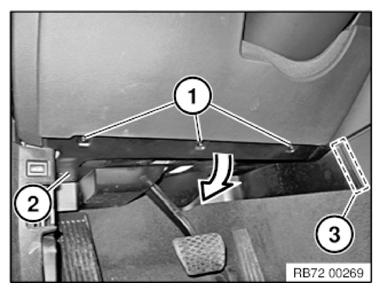

Fig 2: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

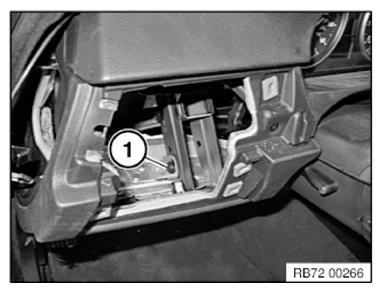

Fig 3: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

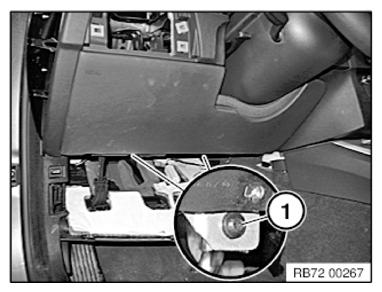

Fig 4: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Always replace airbag module for driver protection completely!

Do not carry out any repairs on airbag module!
