61 31 270 Replacing switch for reversing light

WARNING: This page is about a different variant/trim than selected.

NOTE: The installation location of the switch for the reversing light can vary depending on the transmission variant.

Necessary preliminary tasks:

Version A:

Disconnect plug connection (1).

Release switch for reversing light (2).

Tightening torque 23 14 1AZ .

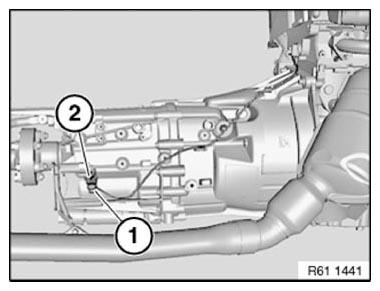

Fig 1: Identifying Reversing Light And Plug Connection (Version A)

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Disconnect plug connection (1).

Release switch for reversing light (2).

Tightening torque 23 14 1AZ .

Fig 2: Identifying Reversing Light And Plug Connection (Version B)

Courtesy of BMW OF NORTH AMERICA, INC.
