Section 30 (General Electrical System - Repair - E90)
>>
Control Units, Modules, Sensors, Aerials
>>
61 35... Overview of control units
61 35... Overview of control units
WARNING:
This page is about a different variant/trim than selected.

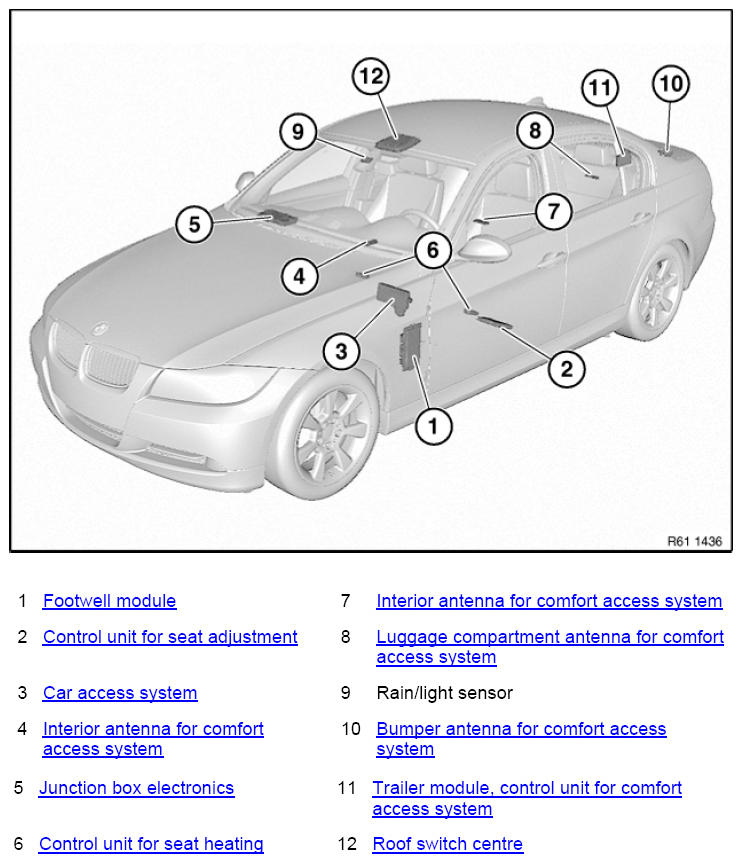

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
